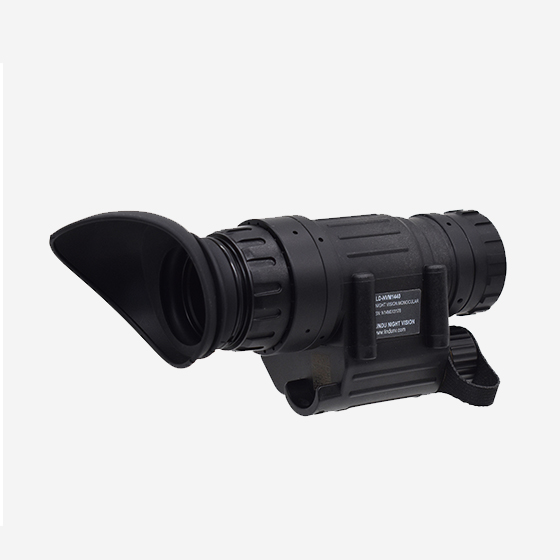

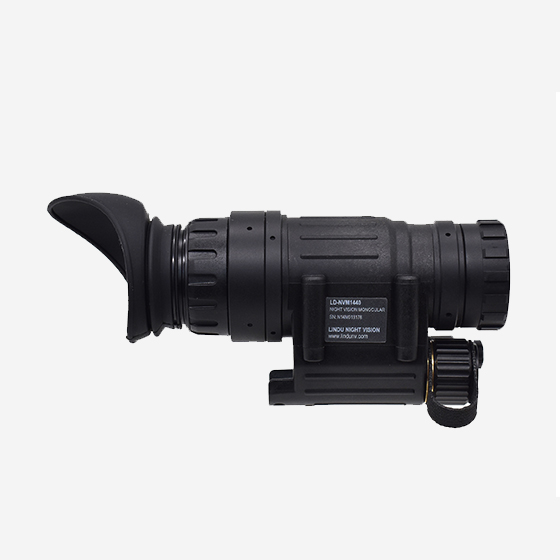

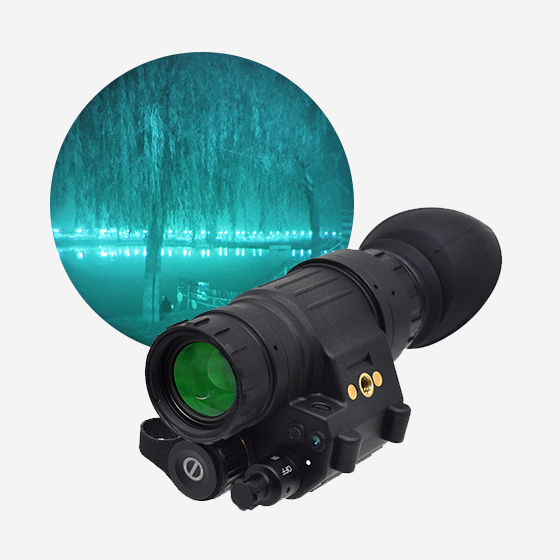

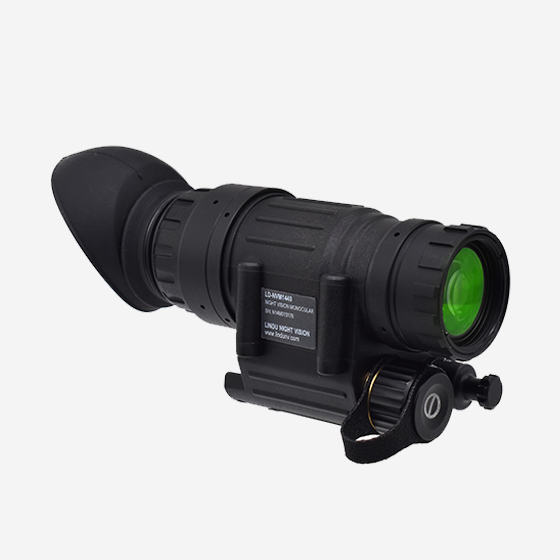

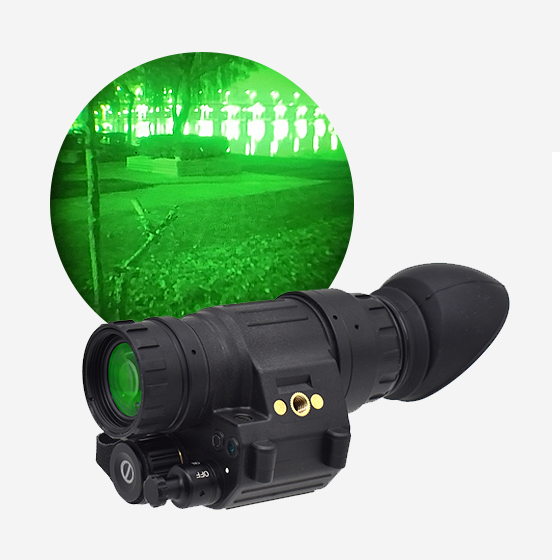

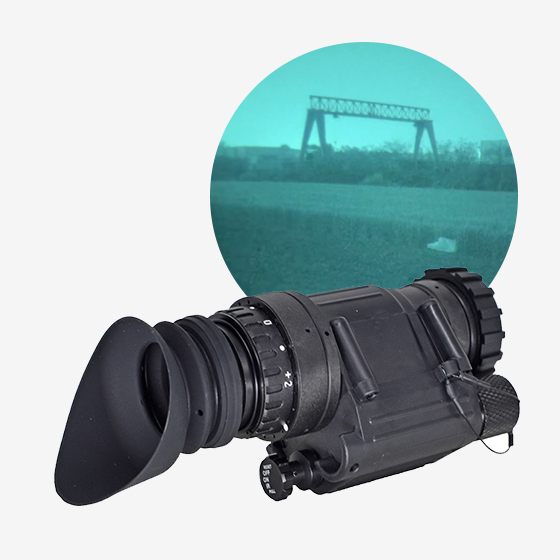

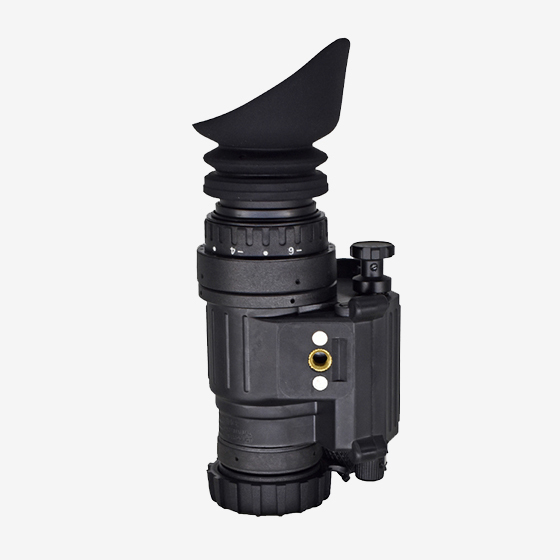

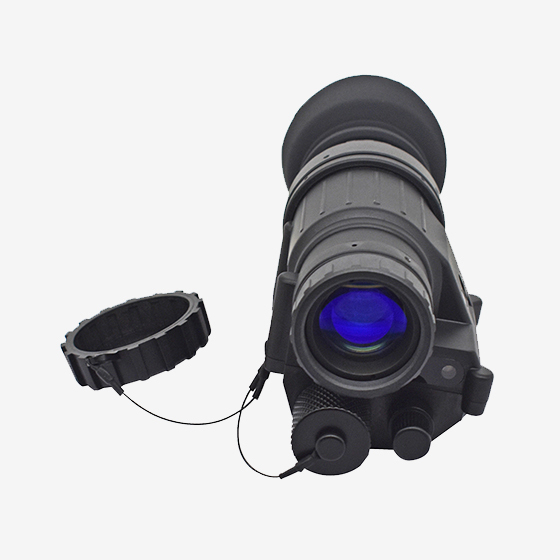

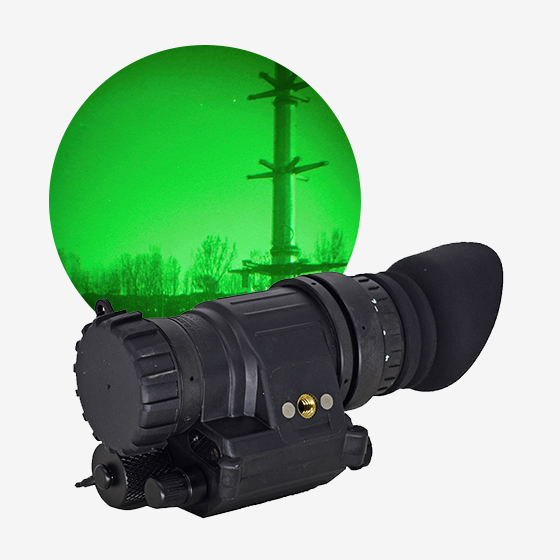

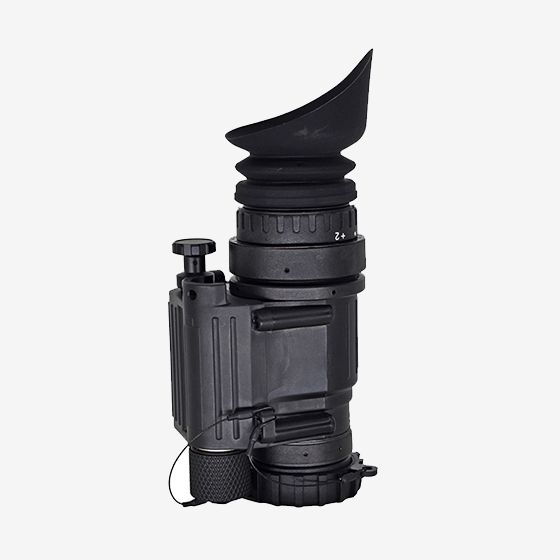

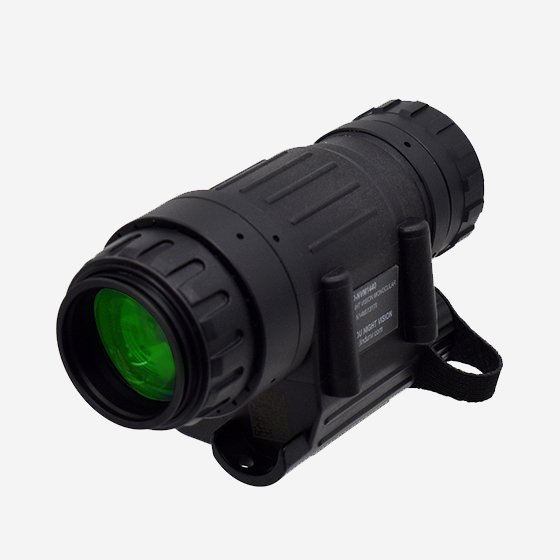

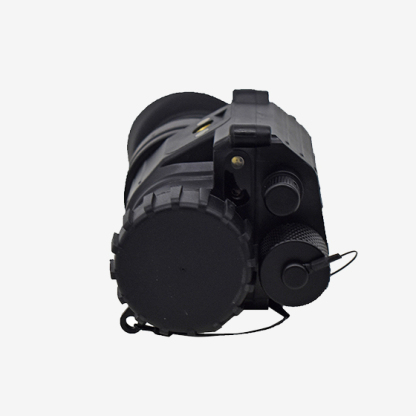

Night Vision Monocular PVS14
Lead time 7 days
1 Year Warranty
Payment Protact
Well Packed
The LD-NVM18 is LinduNV's (Nanyang Lindu Optics), a company with years of experience in the optics field, launching its flagship PVS14 night vision monocular device in 2025. After a year of market feedback and iteration, it has become the benchmark for both performance and price of the Chinese version of the PVS14, highly favored by professional night vision users.
The device achieves a comprehensive breakthrough in compatibility, seamlessly adapting to original PVS-14 and Carson lenses, and supporting mainstream Gen 2+ and Gen 3 image intensifier tubes (including MX10160, MX11769 pigtail tubes, etc.), meeting the image quality needs of various scenarios.
Equipped with an original custom J-arm bracket, it achieves intelligent control with "flip-up to turn off, flip-down to turn on," and the dual-knob manual gain adjustment allows for precise adaptation to low-light environments. The high-definition optical system combined with high cost-effectiveness has gained recognition from professional users such as security and patrol personnel and outdoor adventurers, making it a preferred alternative to the PVS14.

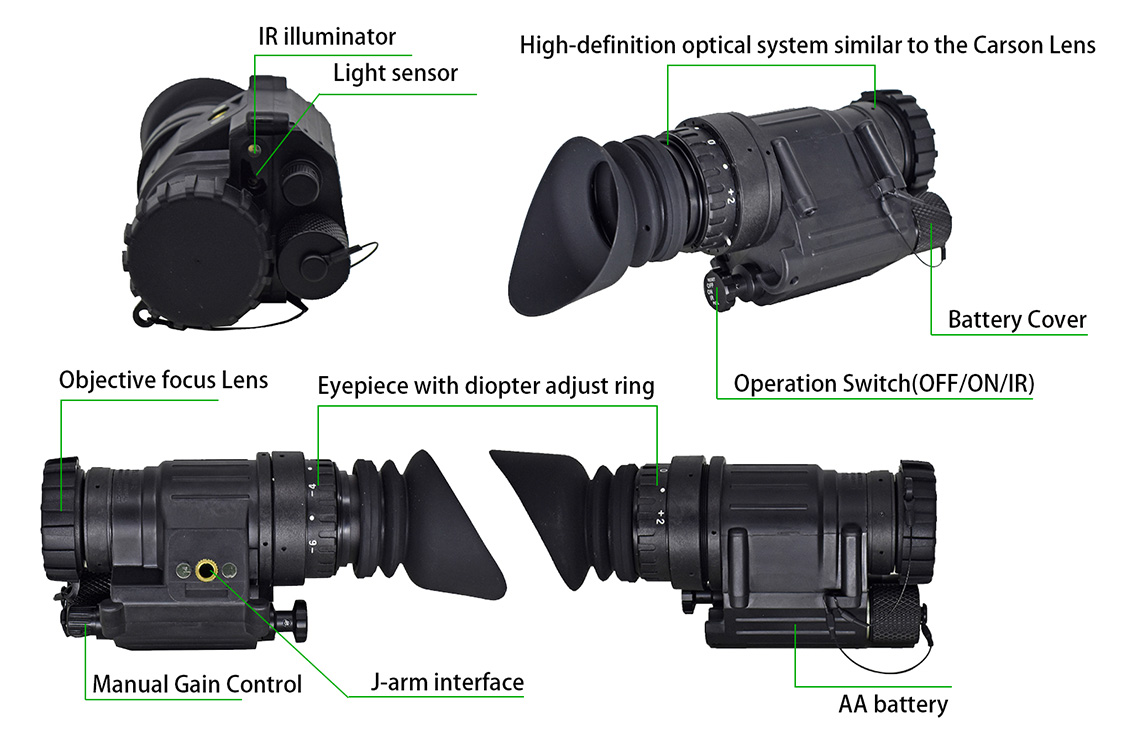

Main features:
1. Same optical quality with Carson lens;
2. Build in IR indicator and low battery indicator;
3. IP65 waterproof standard(IP67 optional);
4. Separate manual gain control knob;
5. 30mm diameter eyepiece lens;
6. Longer eye relief 30mm with full FOV;
7. AA battery;
8. Automatic shut off when flipped up;
9. Can fit 3X and 5X magnifier lens;
10. Offer accessories like Sacrificial window, demist shield, rail mount, Tarsier Eclipse, J-arm and mount
| Gen2+ Image intensifier tube | |
|---|---|
| FOM | FOM1400+/FOM1600+/FOM1800+/FOM2000+ |
| SNR | ≥23/≥25/≥28/≥28 |
| Resolution(lp/mm) | ≥60/≥64/≥64/≥68 |
| Gain(cd/m²/lx) | 8000-12000/8000-12000/10000-20000/10000-20000 |
| Optical | |
| Magnification | 1X |
| View angle(degree) | 40+/-2 |
| Optical distortion | 0.5% Max |
| Diopter range | -6 ~ +2SD |
| Optical system | F1.2 25mm |
| Focus range(M) | 0.25–∞ |
| Eye relief | 30mm |
| Optical MTF | 120LP/mm |
| Parallelism of optical axes | ＜0.05° |
| Electric | |
| Auto function | Flip up auto shut off |
| Battery type | AA |
| Switch model | OFF/ON/IR |
| Battery voltage | 1.2-1.5V |
| Power | ＜0.1W |
| Working time | 40H |
| IR illuminator | 850nm 20mW |
| IR indicator | Yes |
| Low battery indicator | Yes |
| Structure | |
| Focus type | Manual |
| Gain control | Manual |
| Weight | 310g |
| Temperature range(℃) | -40--+55 |
| Humidity range | 5%-95% |
| Waterproof standard | IP67 |
