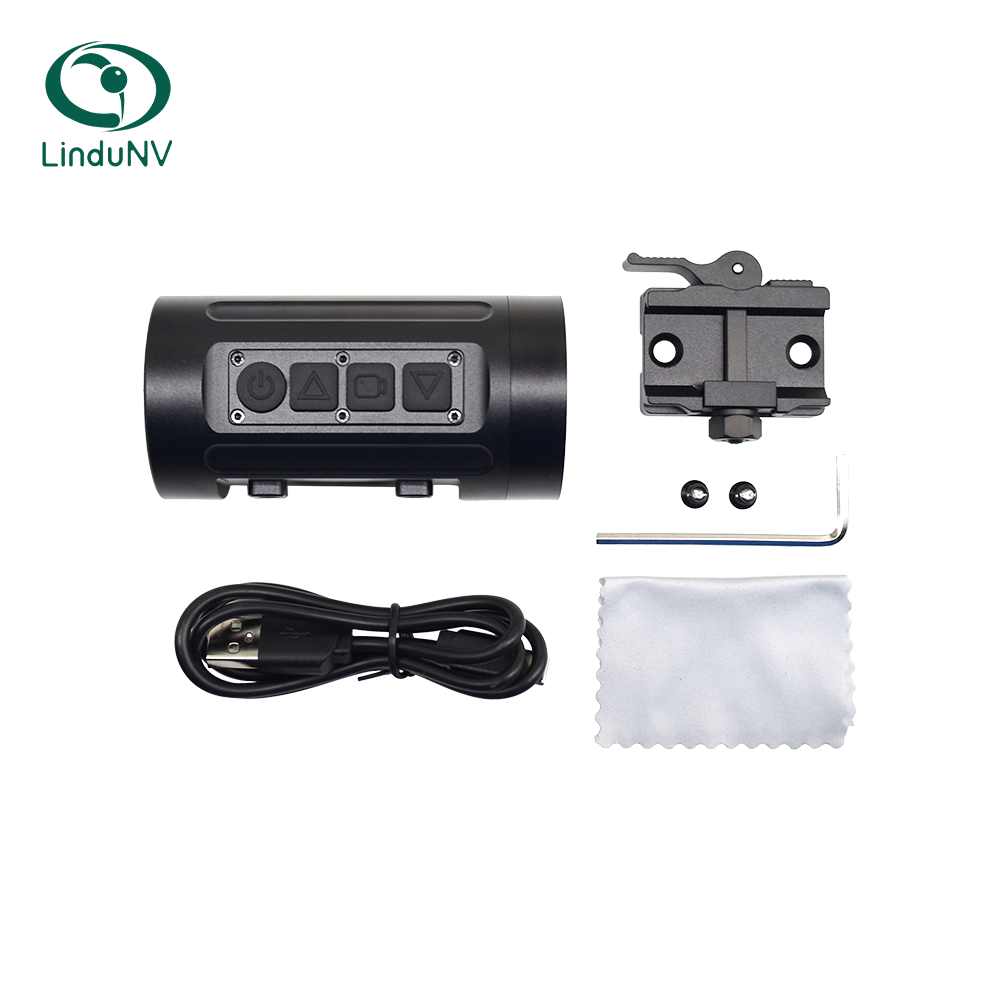

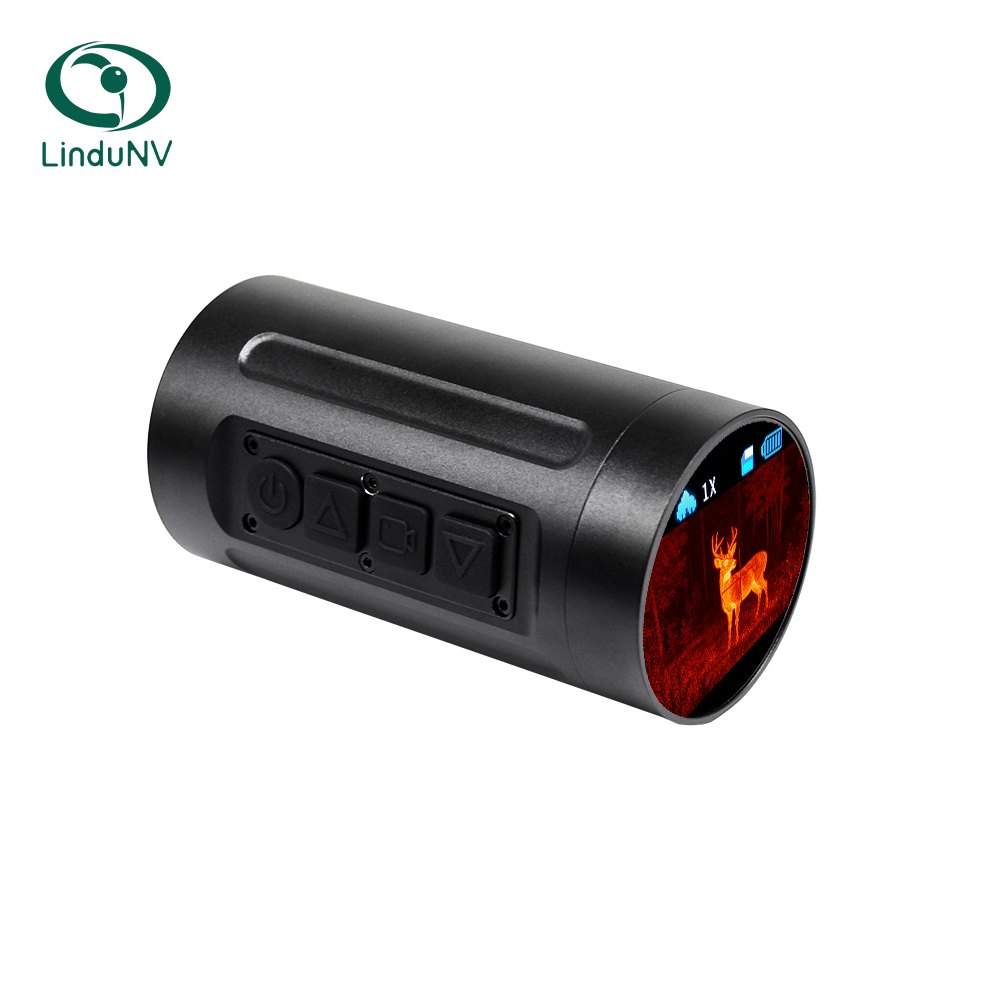

LDTI007 50Hz Thermal Scope 256×192 with 9.7mm F1.0 Lens

The LDTI007 is a compact thermal imaging scope featuring a 256 × 192 infrared detector, 12 μm pixel pitch, and smooth 50 Hz refresh rate. Operating within the 8–14 μm spectral band, the passive LWIR system detects thermal radiation without requiring an external illuminator.

A 9.7 mm F1.0 objective lens provides an 18° × 13.55° field of view, while fixed-focus operation keeps observation simple and direct. The LDTI007 supports person identification at distances of up to 500 meters and vehicle identification at distances of up to 900 meters, together with selectable 1× and 2× digital zoom.

The device is equipped with a 1.66-inch 466 × 466 display and five thermal color modes: White Hot, Black Hot, Red Hot, Green Hot, and False Color. It also supports reticle and video recording functions, USB-C 5V power input, 11 interface languages, IP66 protection, and at least 6 hours of battery runtime for extended outdoor observation.

Main Features

1. 256 × 192 thermal resolution: provides thermal observation through a compact infrared detector with a 12 μm pixel pitch.
2. 50 Hz refresh rate: delivers smooth and responsive real-time thermal images during scanning and observation.
3. Passive LWIR imaging: operates across the 8–14 μm spectral band and requires no illuminator for thermal observation.

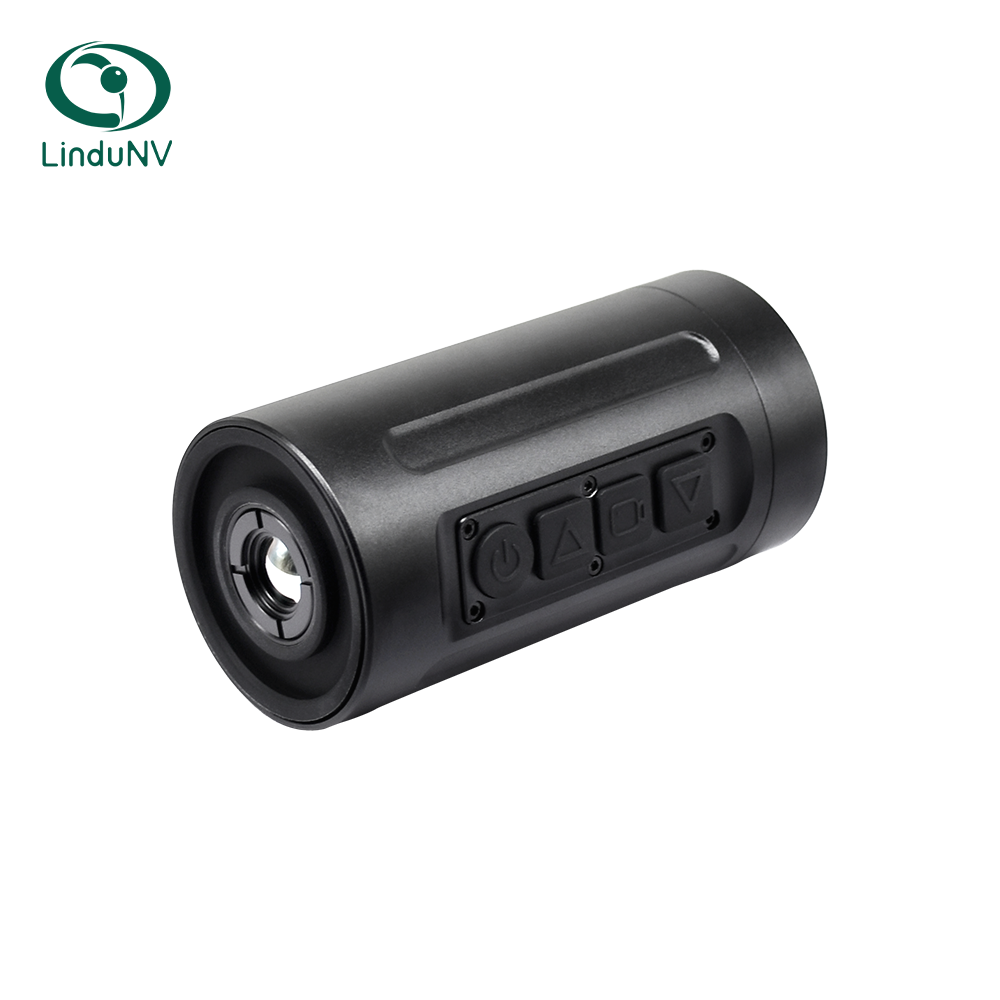

4. 9.7 mm F1.0 objective lens: provides an 18° × 13.55° field of view for short- and medium-range observation.
5. 500 m person identification: supports person identification at distances of up to 500 meters.
6. 900 m vehicle identification: supports vehicle identification at distances of up to 900 meters.
7. 1× / 2× digital zoom: allows quick adjustment between wider observation and closer target viewing.
8. Fixed-focus optical system: reduces focusing steps for straightforward field operation.

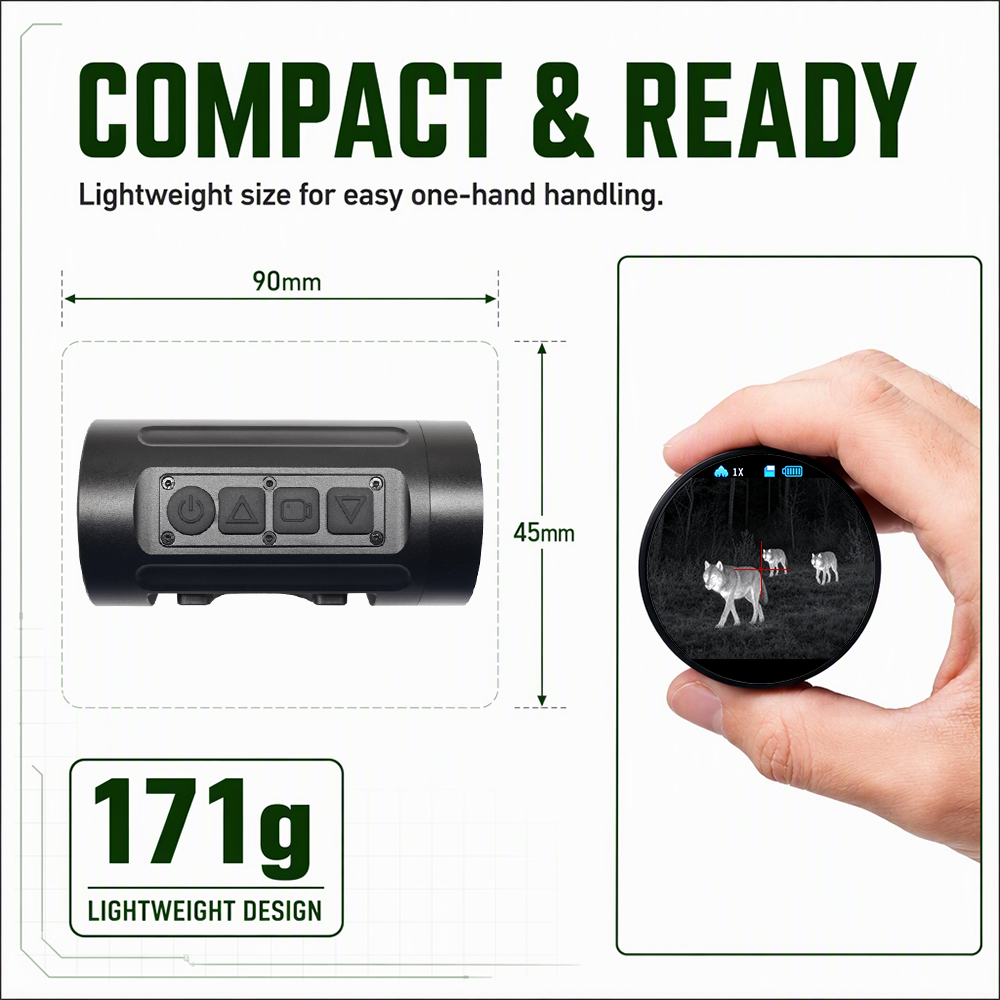

9. 1.66-inch 466 × 466 display: provides a compact viewing interface for thermal observation.
10. Five thermal color modes: White Hot, Black Hot, Red Hot, Green Hot, and False Color provide multiple visualization options for different environments.
11. Reticle and video recording: supports reticle display and video recording functions for field use.
12. 11 interface languages: supports English, Spanish, Portuguese, Polish, French, Russian, Italian, German, Arabic, Chinese, and Japanese.
13. USB-C 5V power input: provides a convenient power and connection interface.

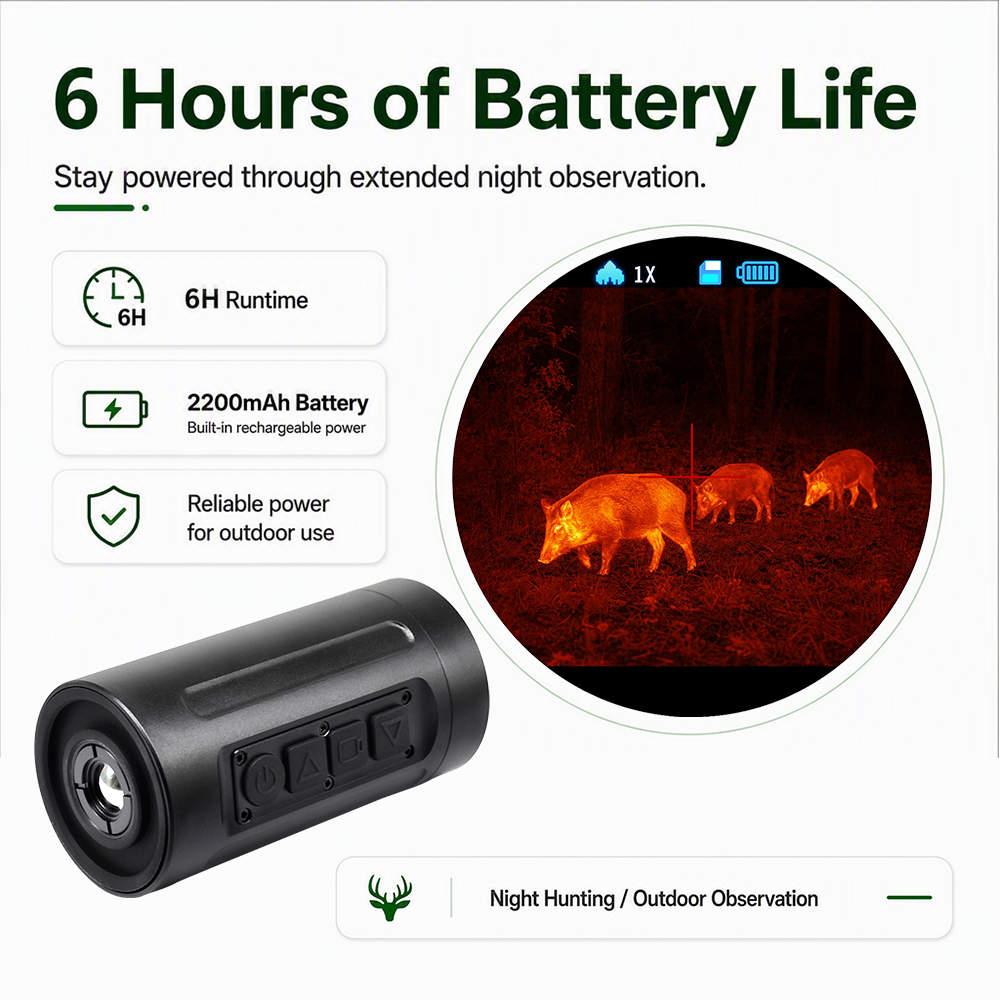

14. Extended battery runtime: provides at least 6 hours of operating time with the specified 2200mA Li-ion battery.
15. Field-ready protection: features IP66 protection, 1000 g / 3 ms shock resistance, and an operating temperature range from -20°C to +50°C.

Technical Specifications
